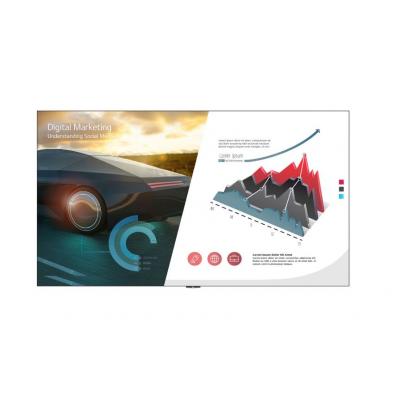

LG 163″ LAEC018 All-in-One LED Display webOS

SKU:

£36,595.00

  • Availability: In Stock
  • Category: LED All In One

All-in-One LED Display with webOS

A man explains content on the screen of an LAEC installed with a dedicated stand in an auditorium.

* All images in this page are for illustrative purposes only and may differ from the actual product.
* Stand accessories differ by models, and need to be purchased separately.

People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room.

All-in-One LED Screen with Built-in Speaker

LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn’t require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

This consists of total 3 steps’ images for securing cabinets, attaching LED modules, and connecting the power cable.

* Fixing screws or installing wall mount / accessories is needed additionally.
* The image is illustrated as an example of LAEC015 model.

Versatile Installation with Dedicated Accessories

The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.

"The LAEC installed on the wall with wall mounted. The LAEC’s have been installed along with the optional dedicated stand in an event hall. Two LAECs are installed on a hotel’s ballroom walls side by side"

* Stand accessories differ by models, and need to be purchased separately.

A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

The LG employee is remotely monitoring the LAEC series installed in a different place by using cloud-based LG monitoring solution.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.

* The availability of LG ConnectedCare differs by region.
** Stand accessories differ by models, and need to be purchased separately.

There are one in the meeting rooms with the signage and one of AV control system which helps users control the LAEC series.

Compatible with
AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

There are one in the meeting rooms with the signage and one of AV control system which helps users control the LAEC series.

Wireless Screen Sharing

The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.

* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added ‘FREEZE’ button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.

The functions of the LG Magic Remote are shown in two images. The left image show the Magic Remote’s function which allow it to be used as a laser pointer on the LAEC screen. The right image is the Freeze Function, and when the Freeze button on the Magic Remote is pressed, the LAEC screen installed on the conference room wall is paused.

* LG Magic Remote needs to be purchased separately.
** The FREEZE function is only available when the LAEC is connected to an external input signal.

Print

All Spec

PHYSICAL PARAMETERS

  • Pixel Configuration

    Single SMD

  • Pixel Pitch (mm)

    1.88

  • Screen Resolution (WxH)

    1,920 x 1,080

  • Module Dimensions(WxH,mm)

    300 × 168.75

  • No. of Modules per Screen (WxH)

    12 × 12 (Total 144)

  • Screen Dimensions (W x H x D, mm, including bezel)

    3,604 × 2,029 × 45.5 (Thickest 81)

  • Screen Surface Area (㎡)

    7.29

  • Cabinet material

    Aluminum

  • Physical Pixel Density (pixels/㎡)

    284,444

  • Flatness of Cabinet (mm)

    ±0.2

  • Service access

    Front

OPTICAL SPECIFICATIONS

  • Max. Brightness (After Calibration)

    500

  • Color Temperature (K)

    3,200 – 9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    160

  • Brightness Uniformity(%)

    98%

  • Color Uniformity

    ±0.015 Cx, Cy

  • Contrast Ratio

    3,000:1

  • Processing Depth (bit)

    16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Screen, Max.)

    2,200

  • Power Consumption (W/Screen, Avg.)

    880

  • Power Consumption (W/㎡, Max.)

    302

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,000

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    0 to +40

  • Operating Humidity

    10-90% RH

  • IP rating Front

    IP30

  • IP rating Rear

    IP20

SPEAKER

  • Speaker

    Built-in (9 W + 9 W)

STANDARD

  • Certification

    CE, FCC, ETL, CB

ENVIRONMENT

  • Environment

    RoHS, REACH

CONTROLLER

  • Controller

    Embedded
